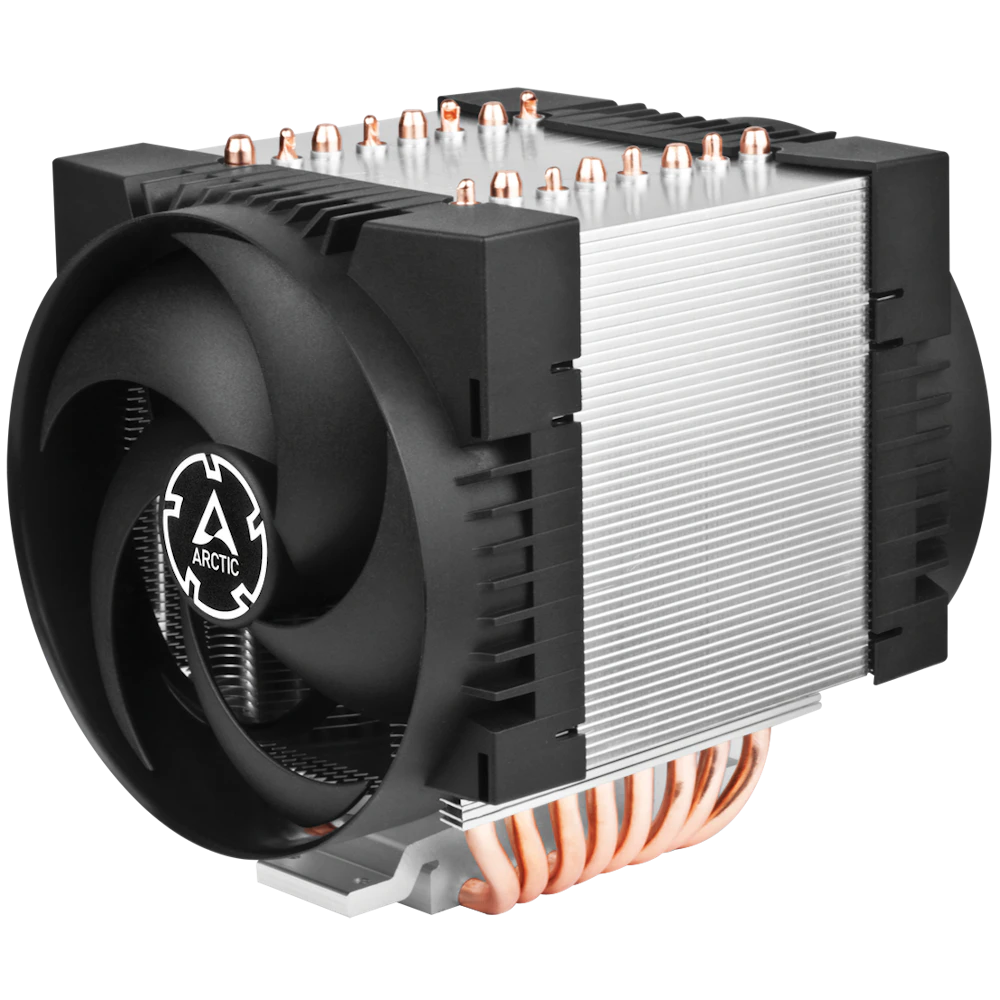

The Freezer 4U-M Rev. 3 is compatible with a wide range of Intel and AMD server processors, including Intel sockets LGA4189 and LGA4677, as well as AMD sockets SP6, sTR5, SP3, TR4, sTRX4, and sWRX8. With a power consumption of only 2.88 watts while delivering high cooling performance, it emphasizes energy efficiency and is ideal for cooling high-performance processors with up to 64 cores and a TDP of up to 350 watts.

The Freezer 4U-M Rev. 3 offers a generous 53 mm of clearance for memory, allowing the use of RAM modules with moderate heatsinks. This space facilitates efficient airflow and ensures compatibility with various types of RAM. With an optimised installation height of only 145 mm, it fits into both classic 4U server racks and most consumer 4U cases available on the market. The Freezer 4U-M Rev. 3 features a compact design with dimensions of just 156 x 124 mm. This also makes it suitable for dual-socket motherboards. To adjust the airflow direction if required, the fans can be easily swapped over.

Compatibility

• Intel: LGA4710, LGA 4677, LGA 4189

• AMD: SP6, sTR5, SP3, TR4, sTRX4, sWRX8

• Ampere: LGA4926 (separate mounting kit required)

• Server rack unit: 4U & up

Heatsink Specifications

• Heatpipes: 8x 6mm direct touch

• Number of fins: 57

• Fin material: Aluminium

Fan Specifications

• Fans: 2x 120mm

• Fan speed: 400–2300rpm

• Airflow: 71.90 CFM | 122.16 m³/h

• Speed control: PWM

• Static pressure: 3.30 mmH²O

• Noise level: 40 dBA

• Connector: 4-Pin plug

• Fan bearing: Dual Ball Bearing

• Cable length: 200 mm

• Current | Voltage: 0.12A | 12V DC

• Startup voltage: 8V DC

General Specifications

• Thermal compound: ARCTIC MX-7 0.8g syringe included

• Operating ambient temperature: 0-40°C

• Dimensions: 124 x 156 x 145mm (L x W x H)

• Weight: 1332g
